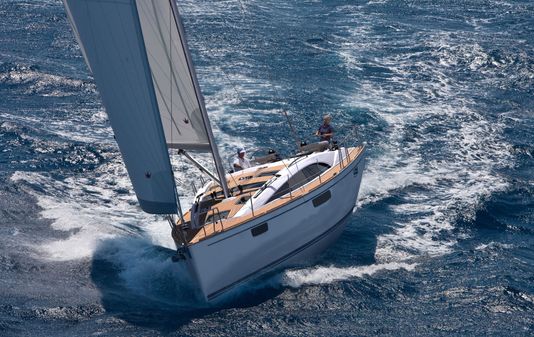

2013 Bavaria Vision 42

BAVARIA presents second VISION line model

Following the successful premiere of the VISION 46, BAVARIA presents the latest addition to the new VISION line. The new VISION 42, which benefits from the same features and innovations as its big sister, will be premiered at the Festival de la Plaisance de Cannes in September. BAVARIA is pleased to be able to release technical details and price information for the 42-foot yacht in advance.

The VISION 42 stands out in particular thanks to her unique, innovative styling and sleek exterior design. On deck there are a range of ergonomic comfort features for both skipper and crew: control, docking and winch mechanisms are in reach for easy manoeuvring. Below deck, a generous lounge area affords additional comfort. Two comfortable cabins and intelligent interior organisation make the Vision 42 a luxury cruiser yacht. It has high-quality, functional furnishings throughout and can sleep up to six persons.

Innovative features such as the new BAVARIA Dock and Trim Control, which was designed especially for BAVARIA, ensure easy handling and great performance – whether sailing alone or with a larger crew.

The VISION line from BAVARIA is a new luxury sailing yacht collection. It is the unique result of a Europe-wide series of workshops which involved end users in its development right from the outset. The VISION line was designed based on owners’ conceptions of their own dream yacht.

The VISION 42 is available at an entry level price of 134,900 euros ex shipyard. The VISION 42 will be premiered at the Festival de la Plaisance de Cannes 2012 from 11th to 16th September.

Hull

• Hull color silk grey

Rudder/Keel

• Cast iron keel as shallow keel
• Bow thruster SE 100, electrical incl. operating battery (not in combination with Bavaria Docking Control)

Anchor

Deck coating

• Solid wood on side deck
• Solid wood on coach roof

Deck

• 6 stainless steel cleats

Cockpit

• Solid wood on cockpit flooR
• Sprayhood BLUE with handhold
• Bimini blue
• Upholstery on seat thwarts in cockpit, seat and back rest and sunpads on helmsman seat

Standing/running gear

• Mainsail furling system incl. reefing mainsail with UV-Protection, offshore-quality (replaces standard mainsail and sport rig)
• standard furling jib
• Rodkick with gas pressurised spring
• replaces backstay adjuster, mechanical with handle)

Winches

• 2 x larger Lewmar Evo aluminium winches in aft of cockpit,2-gear, self-tailing
• 2 x additional Lewmar Evo aluminium winches in middle of cockpit, 2-gear, self-tailing
• 1 x electrical Lewmar Evo aluminium winch on coach roof

Head

• Electrical toilet (per toilet)
• Head in foreship incl. grey water tank

Salon

• Floor Ocean Line
• Upholstery artificial leather "Leatherette"
• Blinds on side windows and panoramic windows

Galley

• 3-flame gas stove with oven

Cabins

• Mattresses fabric "Comfort"
• First aid kit "Coastal"

Water supply

• Warm water boiler 20 l via engine-cooling circuit and 230 V shore power supply
• Drive (additional charge to basic engine)
• Volvo-Penta D2-55, 41 kW / 55 hp, Saildrive
• Folding propeller for Volvo-Penta D2-55, D2-75

Electrical system

• Additional service battery (per unit)
• Battery charger, 40 A (3-channel)
• Diesel generator, 4,5 kVA
• Shore power supply 110 V with 1 x 110 V AC-outlet on switch board
• (not in combination with shore supply 230 V)
• watermaker
• solar panel
• inverter

Multimedia

• FUSION Marine Soundsystem in salon and cockpit: CD-receiver (AM/FM), 2 speakers in salon
• and 2 speakers in cockpit,
• TV cabling digital + analog, incl. antenna with outlets
• TV in owner’s cabin: 22": with 2 x USB plug and DVD-device (only in combination with FUSION Marine Soundsystem in owner's cabin)

Navigation

• VHF-cabling, incl. antenna, installed from mast support to chart table
• VHF-station Garmin VHF 300i AIS (only in combination with VHF-cabling, incl. antenna)
• Radar, Garmin GMR 18 HD
• Garmin GMI 10 Bundle (log, echo sounder, temp and wind), port (only in combination with Garmin GMI 10 Bundle with GWS 10 mast device (log, echo sounder, temp and wind), stb)
• Auto pilot, Garmin GHP 12 Sailpilot (only in combination with Garmin GMI 10 Bundle)
• Chartplotter, Garmin GPSMap 4008 with GPS in cockpit or on chart table (per unit))

Smart sailing

• Sprayhood blue 2023
• Bimini blue 2023
• Rodkick with gas pressurised spring
• Mainsail furling system incl. reefing mainsail with UV-Protection, offshore-quality (replaces standard mainsail and sport rig)
• Battery charger, 40 A (3-channel)
• Warm water boiler via engine-cooling circuit and via 230 V shore supply

Comfort

• Upholstery on seat thwarts in cockpit, seat and back rest and sunpads on helmsman seat
• Blinds on side windows and panoramic windows

Trim control

• 2 x electrical Lewmar Evo aluminium winches in middle of cockpit (rewind)
• 2 x Lewmar Evo aluminium winches in aft of cockpit, 2-gear, self-tailing

Anchor

• Electrical windlass
• Delta anchor, galvanised
• Anchor chain, galvanised, Ø 8 mm, 50 meters

Navigation

• VHF-cabling, incl. antenna, installed in mast to chart table
• Chartplotter, Garmin GPSMap 4008 with GPS in cockpit or on chart table
• Bow thruster SE 100, electrical incl. operating battery
• Auto pilot, Garmin GHP 12 Sailpilot (only in combination with Garmin GMI 10 Bundle)

Navigation II

• VHF-cabling, incl. antenna, installed in mast to chart table
• Chartplotter, Garmin GPSMap 4008 with GPS in cockpit or on chart table
• Auto pilot, Garmin GHP 12 Sailpilot (only in combination with Garmin GMI 10 Bundle)

La Società pubblica i dettagli di questa imbarcazione in buona fede e non può pertanto avvallare o garantire l'esattezza di tale informazione.

• Length overall (approx.) 12,80m
• Length hull (approx.) 12,50 m
• Length waterline (approx.) 11,40 m
• Beam overall (approx.) 4,05 m
• Draught standard (Option) (approx.) 2,07 m (1,62 m)
• Unloaden weight (approx.) 9.800 kg
• Ballast (approx.) 2.450 kg
• Engine, Volvo Penta Saildrive D2-40
• Engine power 29 kW/40 PS
• Fuel tank (approx.) 210 l
• Water tank (approx.) 210 l
• Cabins - Heads, standard  2-1
• Berths 4
• Height in salon (approx.) 2,00 m
• Mainsail (battened) and fore sail, standard (approx.) 88 m²
• Height of mast above waterline (approx.) 18,93 m

Hull

• Hull color white
• 6 Hull windows (fixed)
• Colored stripe on hull, grey

Rudder/Keel

• Cast iron keel as deep keel
• Emergency tiller
• Steering pedestal
• 2 steering pedestals with compass and steering wheels with leather cover
• Instrument console in steering pedestal
• Helmsman seat

Deck

• Deck ventilator
• Cockpit floor, Side deck and coach roof with anti slip structure
• 6 Aluminium cleats
• Coaming for sprayhood
• Twin mainsheet system
• Pulpit, pushpit
• Guardrail
• Rail opening on both sides
• Bow fitting with anchor roller

Bathing platform

• Bathing platform manually lowerable with solid wood
• Bathing ladder stainless steel
• Cockpit-shower for warm and cold water (warm water only in combination with warm water boiler)
• Hatches and side windows
• 7 hatches to open up
• 3 port lights to open up

Cockpit

• Solid wood on cockpit seats
• Cockpit table
• Gasbox "USA" for 2 x 11 lb bottles, self draining

Standing/running gear

• Mainsail, coordinated for sport rig, offshore-quality
• Jib, coordinated for standard fore sail reefing gear, offshore-quality
• Sport rig
• Backstay adjuster, mechanical with handle

Winches

• 2 winch handles
• 1 x Lewmar Evo aluminium winch on coach roof, 2-gear, self-tailing
• 2 x Lewmar Evo aluminium winches in aft of cockpit, 2-gear, self-tailing

Cabins

• 2 of cabins
• Locker in foreship and aft cabin
• Mattresses fabric "New Drell"
• Fabric covered furniture panels
• Standard upholstery

Head

• Pump-toilet with holding tank, disposal via seacock and deck suction
• Shower in shower cabin

Salon

• Interior wood in solid and veneer, standard in mahogany
• Blinds on hatches
• Fly screen on hatches in salon and foreship
• Salon table, fixed
• Salon with settee
• Standard upholstery
• Sideboards, shelves and cabinets
• Faux leather covered panel ceiling
• Handrail on ceiling (stainless steel)
• Handholds at companion way
• Storage space with drawers and flaps
• Companion way door as bulkhead in perspex

Navigation

• Chart table, height adjustible with instrument console and chart table seat

Galley

• 2 flame gas cooker with oven
• Cooler with compressor
• Double stainless steel sink
• Dish dryer above kitchen island
• 3 Fire extinguishers
• Fire extinguisher blanket

Fresh water

• 210 l Fresh water tank with level indicator
• Electrical pressurised water pump with filter

Bilge pump

• Manual bilge pump
• Electrical bilge pump

Engine

• Two circuit cooling with seawater filter
• Engine hour meter and rev meter
• Voltmeter, Fuel indicator

Electrical system

• Engine circuit and board circuit, separated
• Starter battery
• 1 Board battery
• Shore supply 230 V (1 x 230 V AC-outlet on switch board) (shore supply 110 V for surcharge)
• Main power supply with circuit breaker and control lamps
• AC-outlet package (8 in cabins and 3 in galley)
• 12 V outlet at switch board

Navigation

• Masthead fly (Windex)
• LED navigation lights and LED anchor light
